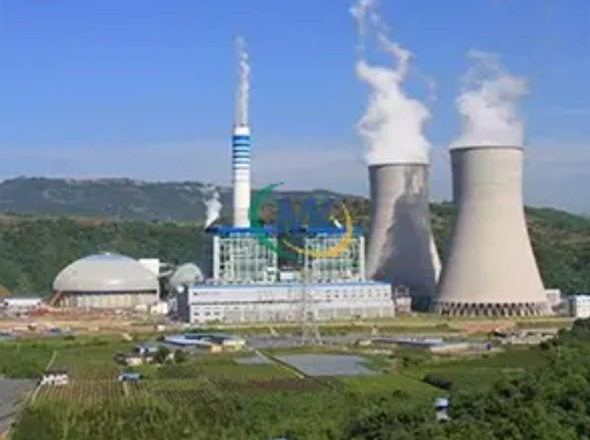

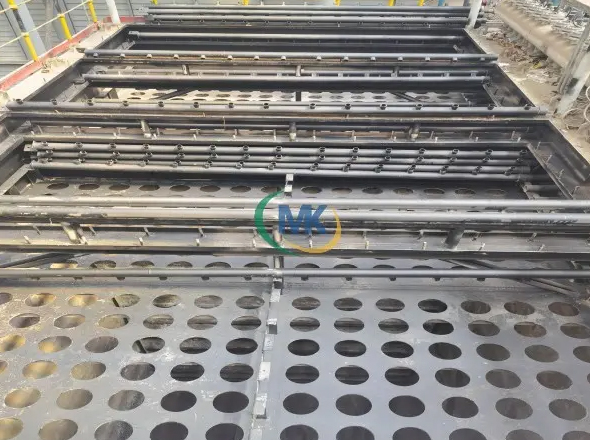

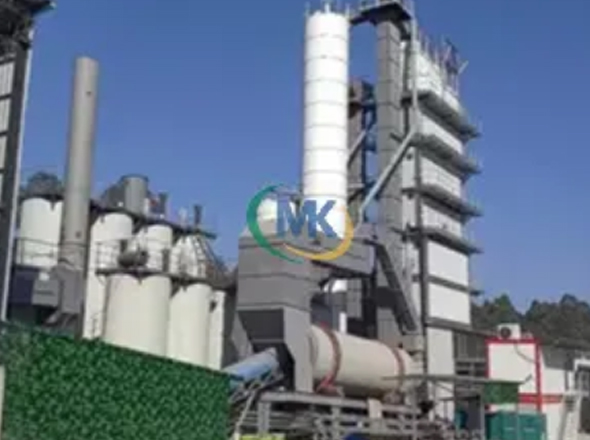

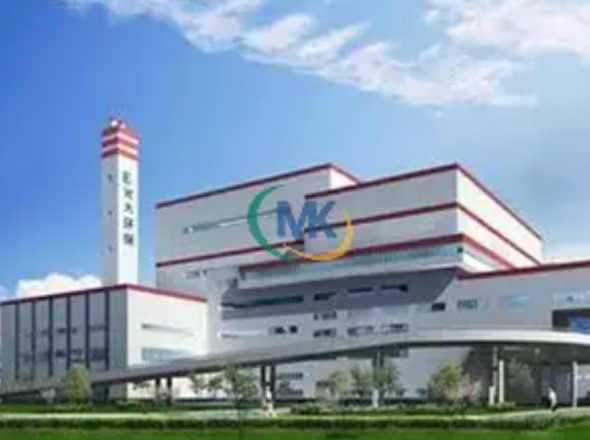

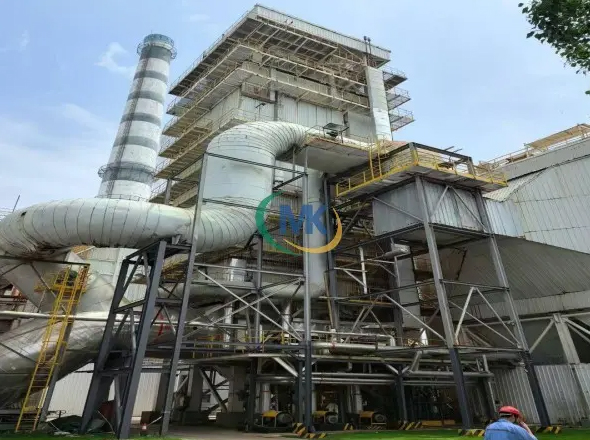

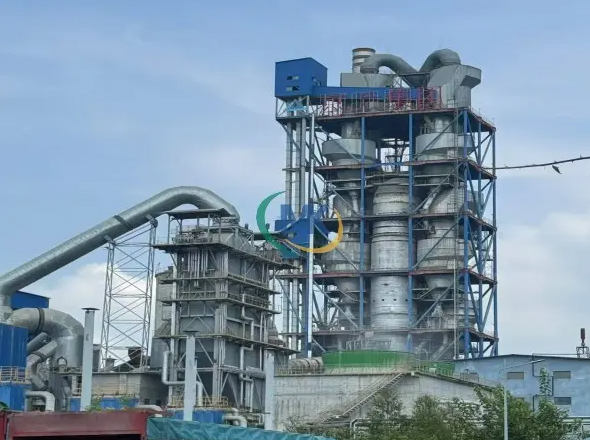

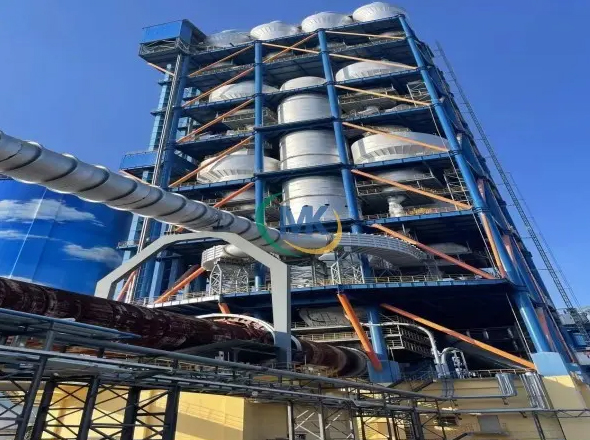

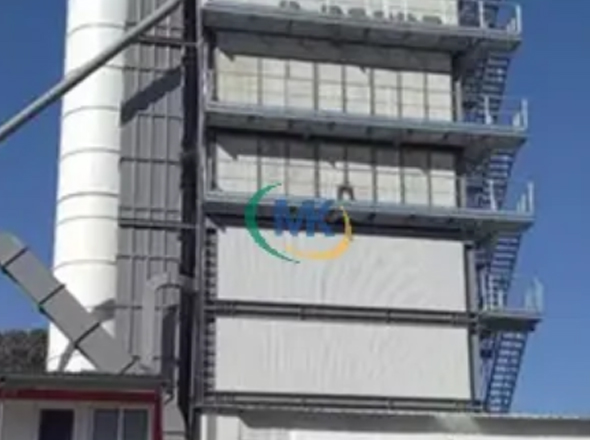

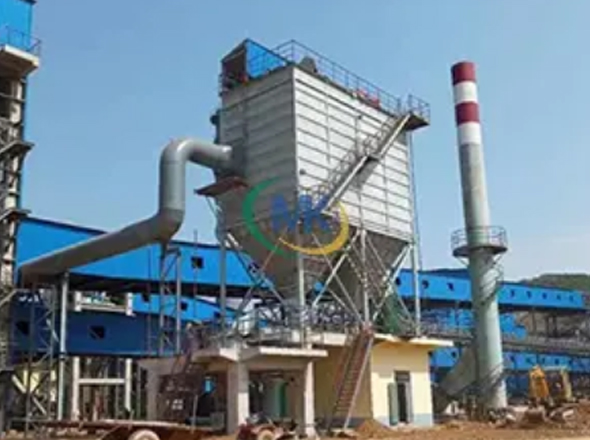

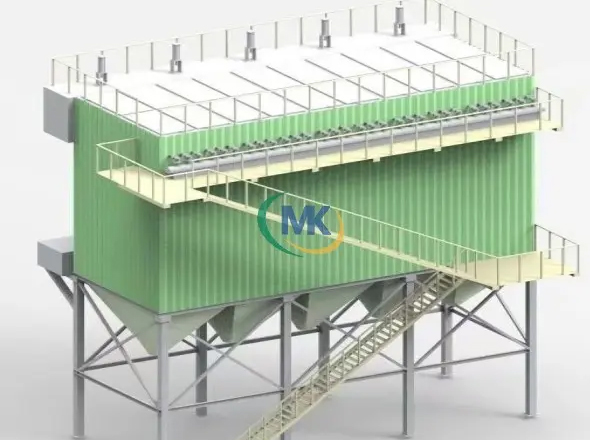

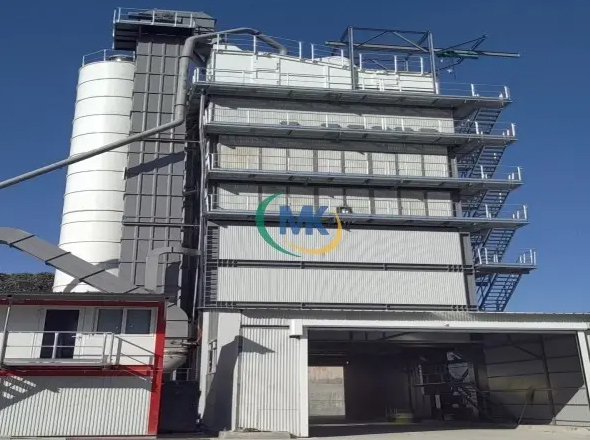

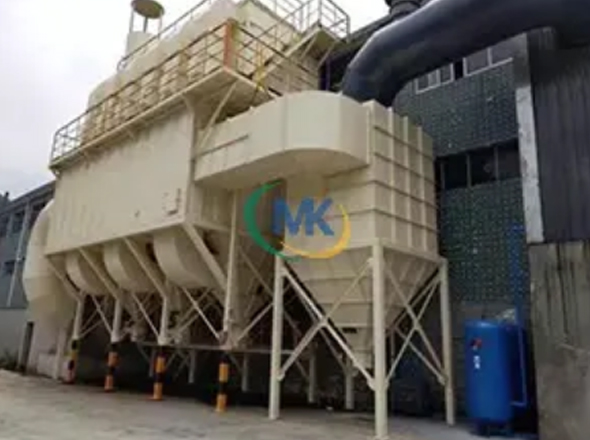

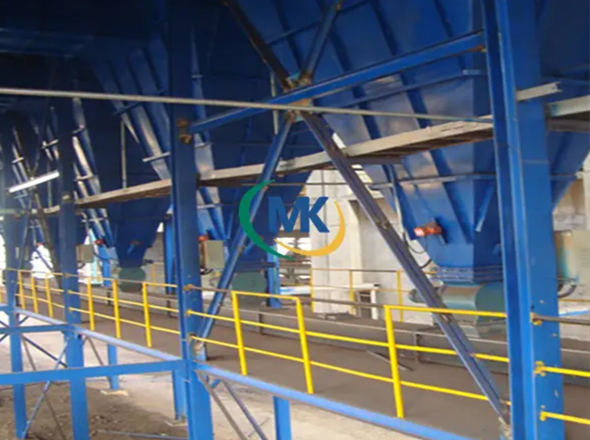

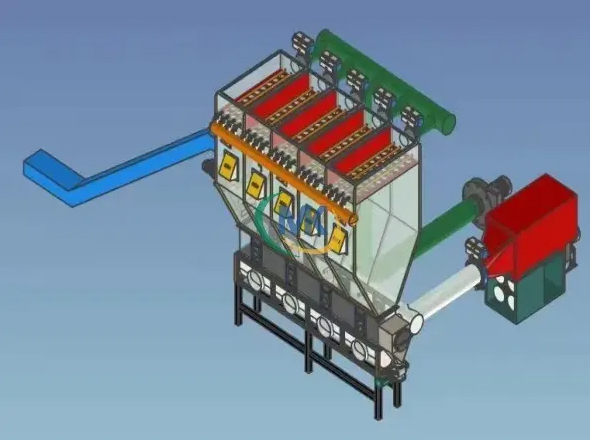

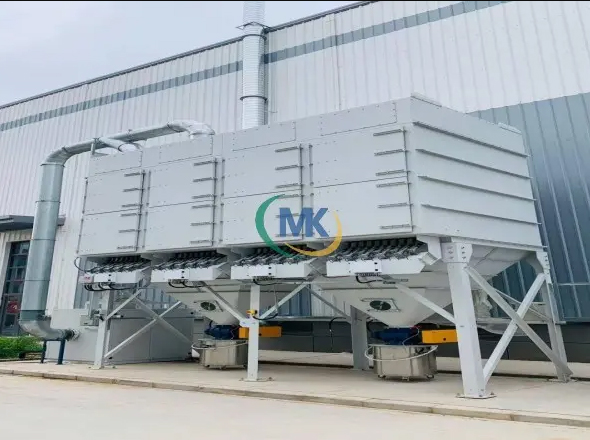

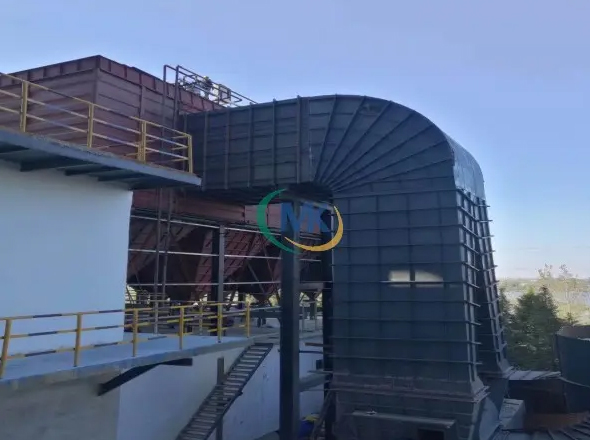

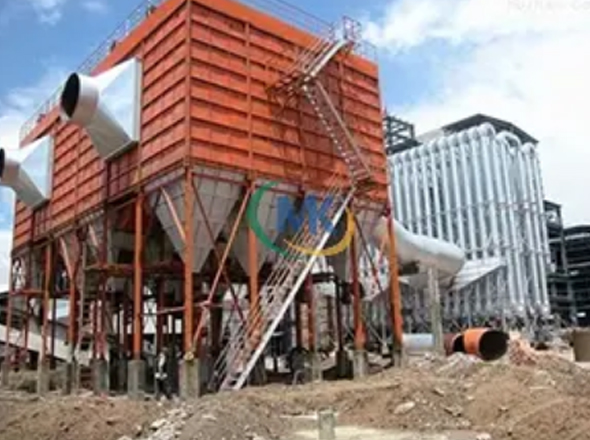

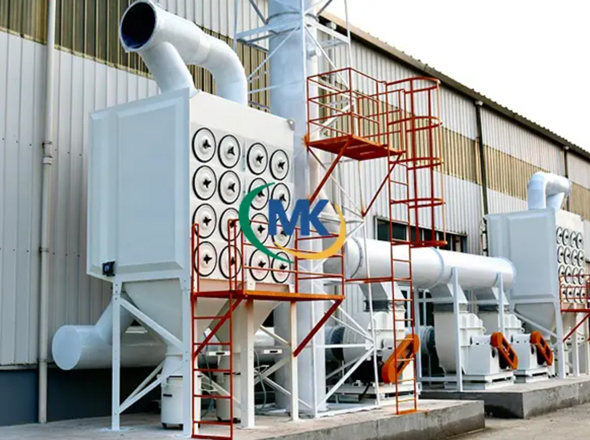

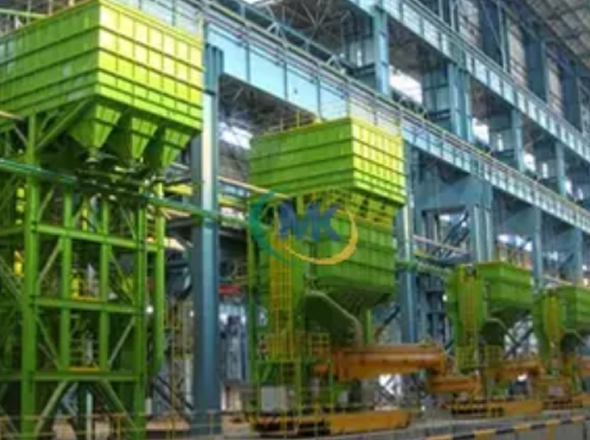

This gallery brings together photographs and illustrations of industrial dust collection equipment, including baghouse layouts, tube-sheet openings, ductwork and hopper arrangements. Use these references when discussing the collector layout and the replacement components you need.
A metal filter cage supports the fabric bag; the filter medium captures the dust. PPS and PTFE describe filter-media or coating choices, not a universal cage construction. Filtration performance depends on the complete collector, media selection, sealing, airflow and cleaning conditions.
For a relevant comparison, identify the equipment arrangement in the gallery and provide the collector model, tube-sheet and mounting details, access constraints and existing component dimensions. Browse our filter cages and filter bags, or send photographs and drawings to Mingkai for a replacement enquiry.
