Envelope Type Filter Bag Cage
Envelope Type Filter Bag Cage

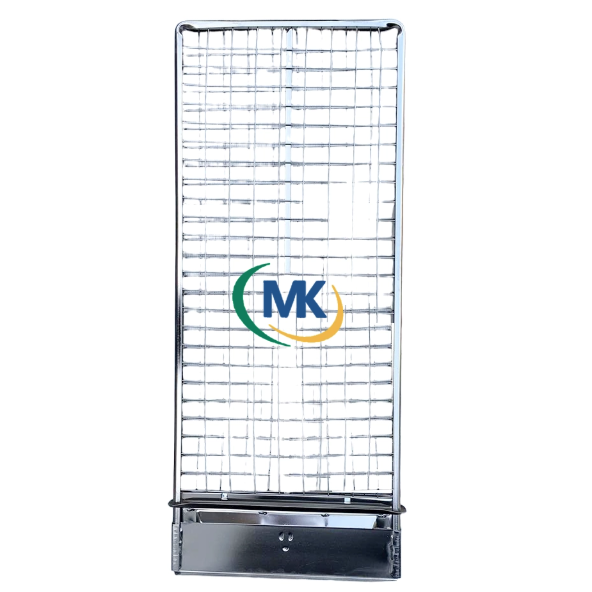

This envelope-style cage has a long rectangular wire grid with a broad plate at one end. Its flat outline is intended to be matched to the corresponding envelope-shaped bag and mounting arrangement, rather than selected by a round-cage diameter.
Flat bag and plate dimensions
Overall height, width and thickness of the support.
End-plate outline, hole positions and attachment details.
Bag opening, seam position and clearance around the wire grid.
Include both the filter bag drawing and the cage drawing when available. The plate must fit the equipment connection while the grid supports the bag without forcing its seams or mouth into the wrong position. Specify the required wire material and finish for the actual dust and gas conditions.
Send drawings, dimensions and quantities to Mingkai to confirm the quotation specification. See the filter cage range or compare the related connection or construction.
