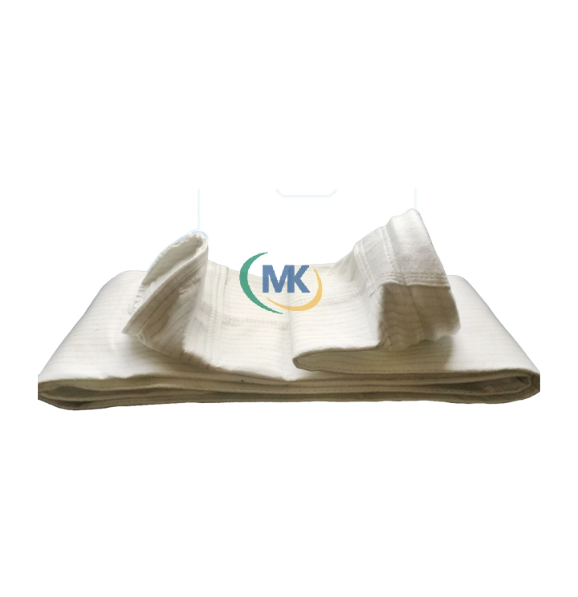

Anti-Static Dust Filter Bag
Anti-Static Dust Filter Bag
These filter bags combine polyester felt with conductive threads for industrial dust collection. Conductive media can support static dissipation when the completed bag and its connection to the collector are properly specified and verified. Select the bag together with filtration requirements, process conditions and the collector design; the bag alone does not provide explosion protection.
Product Advantages
-
Special blend of polyester and conductive fibers for static dissipation
-
Conductive threads support static dissipation; verify bag resistance and the collector connection.
-
Optimal air permeability (200-350 L/M²/S) for efficient operation
-
Surface treatment of singeing and calendering for smooth dust release
Material Properties
-

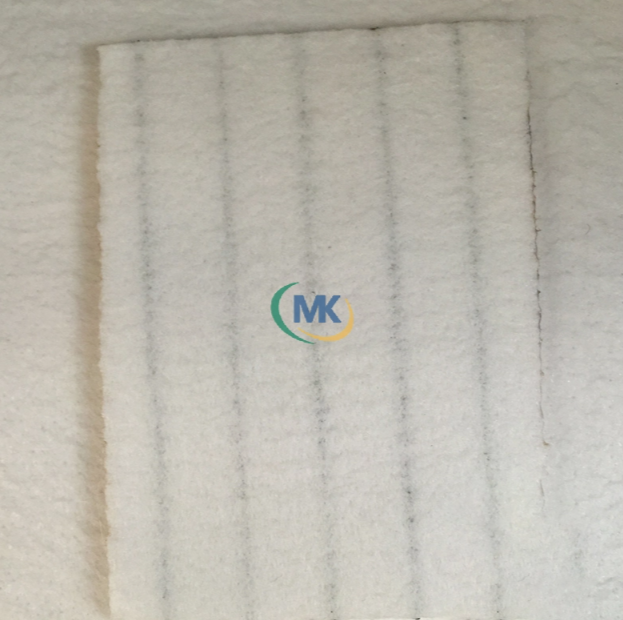

High-quality polyester fibers with embedded conductive threads
-
Uniform weight distribution for consistent performance
-
Good resistance to abrasion and moderate chemical environments
-
Designed for continuous operation at temperatures up to 120°C
Production Capacity
Daily Output: 1000 - 1500 units (custom specifications available)
Standard sizes from 120mm to 160mm diameter, other sizes upon request
Key Applications
Ideal for industries requiring reliable dust filtration with anti-static properties:
Combustible dust applications requiring a system assessment
Chemical Processing
Pharmaceutical
Wood Dust Collection
Product Specifications
Temperature Resistance
Continuous: ≤120°C; Instant: ≤140°C
Material
Polyester Filament Needle Felt with Conductive Threads
Weight
500 g/m²
Thickness
1.6 mm
Air Permeability
200-350 L/M²/S
Surface Treatment
Singeing, Calendaring
Technical Parameters
Core Specifications
| Product Name | Anti-Static Dust Filter Bag |
|---|---|
| Material | Polyester Filament Needle Felt with Conductive Threads |
| Weight (g/m²) | 500 |
| Thickness (mm) | 1.6 |
| Air Permeability | 200-350 L/M²/S |
| Surface Treatment | Singeing, Calendaring |
| Continuous Operating Temp. | ≤120°C |
| Instant High Temp. | ≤140°C |
Mechanical Characteristics
| Tensile Strength (N/5*20cm) | Warp: ≥1060 | Weft: ≥1150 |
|---|---|
| Elongation at Break (%) | Warp: <35 | Weft: <45 |
| Finish Treatment | Singeing, calendering |
Chemical Properties
| Acid Resistance | Good |
|---|---|
| Alkali Resistance | Moderate |
| Abrasion Resistance | Excellent |
| Hydrolysis Resistance | Moderate |
Confirm the application requirements
Combustible dust applications require a qualified system assessment. Confirm the dust properties, approved media, grounding and any required explosion protection with the collector manufacturer. A conductive filter bag alone does not certify a system as safe.
