FMS Filter Bag

Keywords:

Classification:Filter Bag


    Product Description

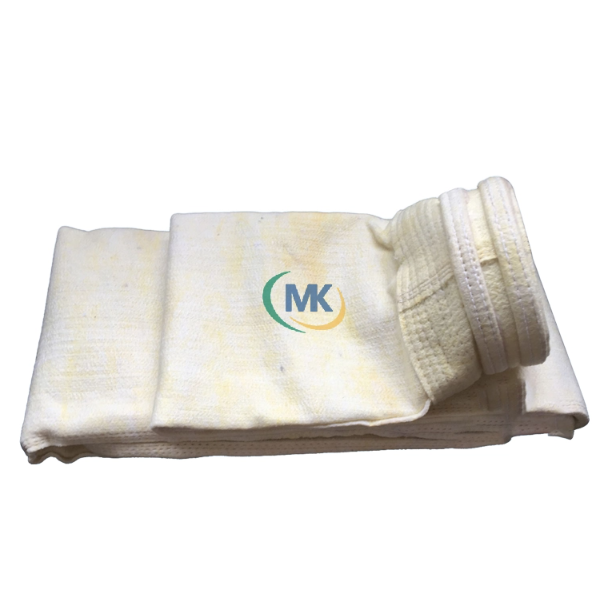

    FMS Filter Bag

    FMS filter bags use composite needle felt for industrial dust collection. The fiber blend, reinforcement, finish and operating limits need to be confirmed for the selected grade. Match the filter specification to the dust characteristics, process temperature, moisture and chemical exposure before ordering.


    Key Features
    • High-temperature resistance up to 280°C (536°F)

    • Excellent resistance to humidity, oil, and corrosive substances

    • Enhanced filtration efficiency with special coating treatment

    • High tensile strength and dimensional stability


    Performance Benefits
    • Long service life even in harsh operating conditions

    • Customizable for any application requirements

    • High dust-holding capacity and low pressure drop

    • Compliant with international quality and safety standards


    Applications


    Waste Incineration


    Steel Processing


    Chemical Manufacturing


    Power Generation


    Product Specifications


    Temperature Resistance

    Continuous: ≤260°C; Short-term: ≤280°C


    Material

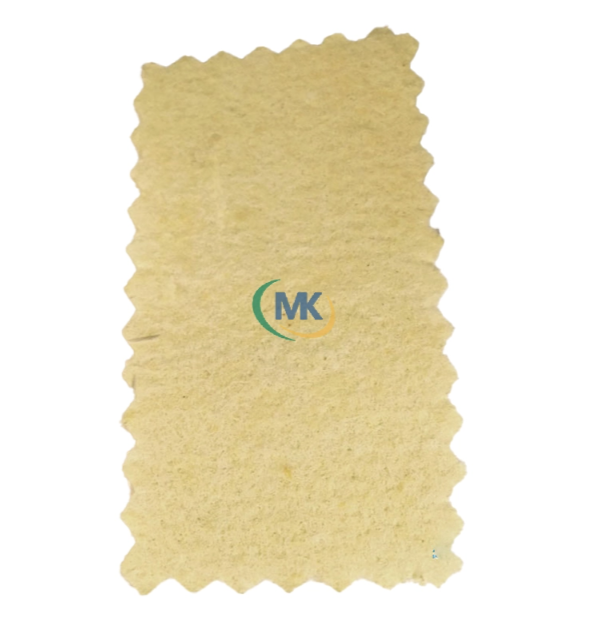

    Composite fiber + glass fiber base fabric


    Gram Weight

    950 g/m²


    Thickness

    3.2±0.3mm


    Air Permeability

    6±20% m³/m²·min @127pa


    Production Capacity

    1.5 million square meters of felt annually


    Operation Guide


    Pre-installation Inspection

    Inspect the FMS filter bag for any signs of damage, such as tears or holes. Ensure compatibility with your filtration system and operating conditions.


    Proper Installation

    Handle the filter bag with care to avoid damage. Install according to manufacturer specifications, ensuring proper tension and sealing to prevent bypass and ensure optimal filtration efficiency.


    System Startup

    Gradually increase temperature and airflow to allow the filter bag to condition. Monitor pressure differentials and adjust as needed to ensure stable operation.


    Regular Maintenance

    Monitor system performance regularly. Conduct visual inspections and replace the filter bag when pressure differentials exceed recommended levels or signs of wear are evident.


    Operation Checklist
    •  Verify filter bag dimensions and specifications

    •  Ensure proper tensioning during installation

    •  Monitor and record pressure differentials

    •  Follow manufacturer's cleaning cycle recommendations


    Safety Regulations


    Temperature Hazard

    Avoid exposing the FMS filter bag to temperatures exceeding its maximum rating of 280°C. Ensure proper ventilation and cooling systems are in place to maintain safe operating temperatures.


    Handling Precautions

    Wear appropriate protective clothing, gloves, and respiratory protection when handling filter bags. Avoid inhaling dust or fibers generated during cutting or installation.


    Chemical Exposure

    While the FMS filter bag has good chemical resistance, prolonged exposure to certain chemicals may degrade performance. Refer to chemical compatibility charts for specific applications.


    Safety Certifications

    ISO 9001:2015

    CE Certification

    GB/T 6006.1

    UL 94 V-0


    Technical Parameters


     Core Specifications
    Product Name FMS Filter Bag (Composite Needle Felt)
    Material Composite fiber + glass fiber base fabric
    Gram Weight (g/m²) 950
    Thickness (mm) 3.2±0.3
    Air Permeability (m³/m²·min @127pa) 6±20%
    Filtration Wind Speed (m/min) <0.8
    Breaking Strength (Warp, N/5*20cm) >1600
    Breaking Strength (Weft, N/5*20cm) >1600
    Elongation at Break (Warp, %) <10
    Elongation at Break (Weft, %) <10
    Continuous Operating Temp. ≤260°C
    Short-term High Temp. ≤280°C

    Chemical Compatibility
    Chemical Substance Compatibility Notes
    Acids (dilute)  Good 长期接触可能需要监测
    Acids (concentrated)  Fair 可能需要特殊处理
    Bases  Good 正常使用条件下稳定
    Oxidizing Agents  Poor 不推荐使用
    Organic Solvents  Fair 视具体溶剂而定
