    Filter Cages for Tube Sheet Layouts

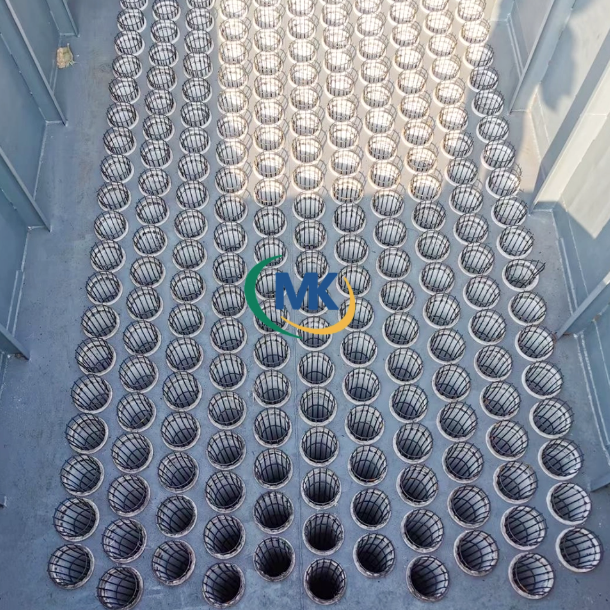

    The view looks down onto a regular array of circular cage openings in a collector chamber. It helps illustrate installation layout and spacing; the actual cage dimensions and connections must still be identified from the equipment drawing.

    Tube-sheet layout and access

    • Opening diameter, hole pitch and the required cage fit.

    • Cage length, top fitting and the bag retaining arrangement.

    • Clearance for installing, removing and replacing each assembly.

    For a multi-position order, provide the tube-sheet layout and the quantity for each cage specification. Note any restricted access or installation sequence. Define custom dimensions, material and any load requirement on the project drawing.

    Send drawings, dimensions and quantities to Mingkai to confirm the quotation specification. See the filter cage range or compare the related connection or construction.
