Short Flanged Filter Cages
Short Flanged Filter Cages

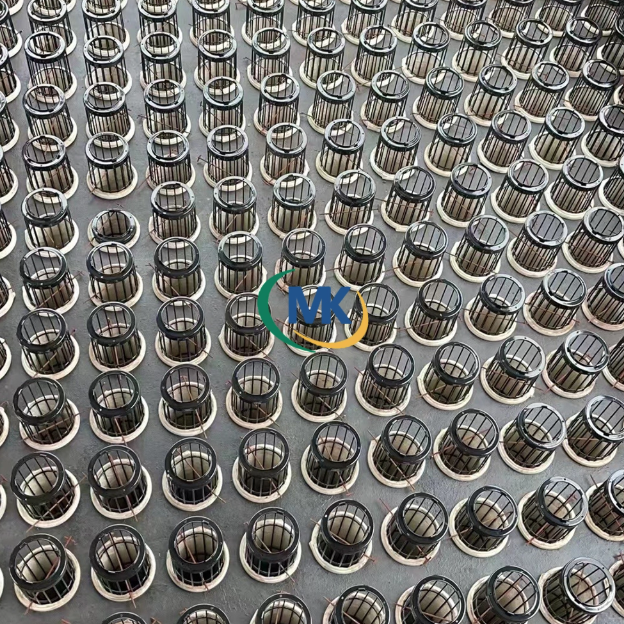

The image shows an array of short cylindrical wire cages with circular end rings and flanged bases. Their short form and end fittings need to be checked against the required assembly rather than assumed to be a full-length or split replacement cage.
Short-body installation dimensions
Body height and cage outside diameter.
Clear opening at the ring and the flange outside diameter.
Flange contact surface, fixing method and seal details.
Indicate whether the short cage is a complete support or part of a larger assembly. Include the drawing of the mating plate or adjacent component. For batch orders, distinguish any different heights or flange arrangements on the parts list.
Send drawings, dimensions and quantities to Mingkai to confirm the quotation specification. See the filter cage range or compare the related connection or construction.
