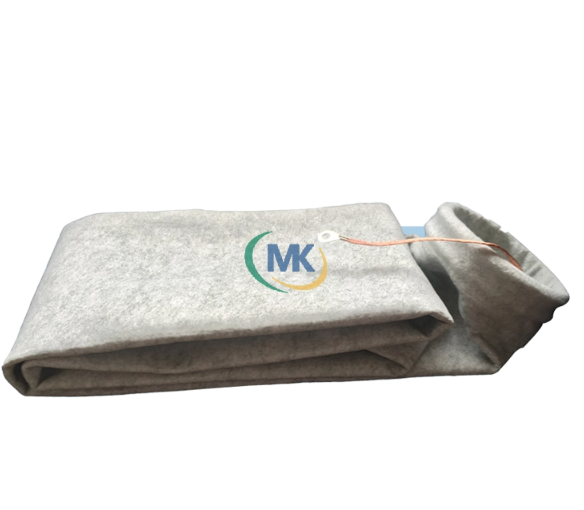

    Blended Conductive Filament Dust Filter Bag

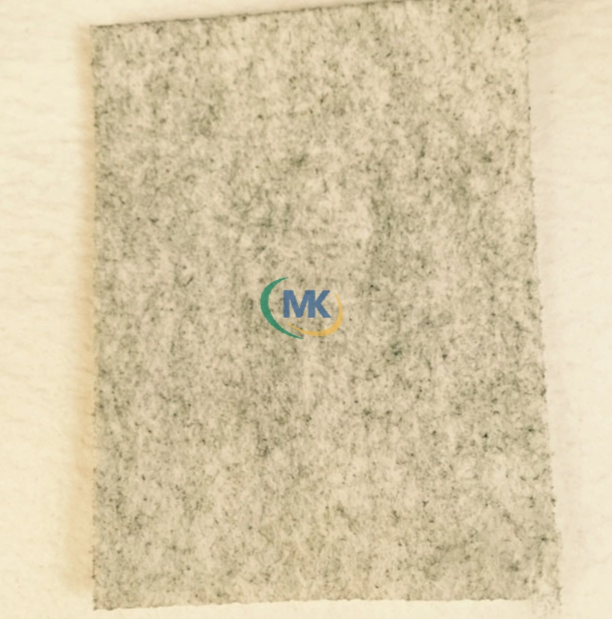

    These dust filter bags use a polyester and stainless steel-fiber blend for applications requiring conductive filter media. Confirm the electrical properties of the finished bag, its mounting connection and the collector grounding arrangement together. Conductive fibers can support static dissipation, but a filter bag does not by itself prevent a dust explosion or establish suitability for flammable gases.


    Product Advantages
    • Unique blend of polyester and stainless steel filaments for antistatic protection

    • Conductive fibers support static dissipation as part of a correctly specified collector system

    • High tensile strength and dimensional stability

    • Precision surface treatments for optimal dust cake release

    Material Properties
    • Polyester/steel fiber blend for optimal conductivity and filtration

    • Advanced needle punching technology for uniform structure

    • Surface treatments including singeing, calendering and heat setting

    • Consistent weight and thickness for reliable performance


    Production Capacity

    Daily Output: 1200 - 1800 units (custom specifications available)

    Standard sizes from 120mm to 160mm diameter, other sizes upon request

    Key Applications

    Potential applications require review of the dust properties and the complete collector design:


    Chemical Processing


    Electronics Manufacturing


    Powder Coating


    Pharmaceutical Production


    Product Specifications


    Temperature Resistance

    Continuous: ≤120°C; Instant: ≤140°C


    Material

    Polyester/Stainless Steel Fiber Blend


    Weight

    500 g/m² ±5%


    Thickness

    1.6 ±0.1 mm


    Air Permeability

    200-350 L/M²/S


    Surface Treatment

    Singeing, Calendaring, Heat Setting


    Technical Parameters


    Core Specifications
    Product Name Blended Conductive Filament Dust Filter Bag
    Material Polyester/Stainless Steel Fiber Blend
    Weight (g/m²) 500 ±5%
    Thickness (mm) 1.6 ±0.1
    Air Permeability 200-350 L/M²/S
    Surface Treatment Singeing, Calendaring, Heat Setting
    Continuous Operating Temp. ≤120°C
    Instant High Temp. ≤140°C

    Mechanical Characteristics
    Tensile Strength (N/5*20cm) Warp: ≥1060 | Weft: ≥1150
    Elongation at Break (%) Warp: <35 | Weft: <45
    Electrical Resistance Specified value: ≤10⁹ Ω; confirm the test method and completed-bag acceptance criteria.
    Finish Treatment Singeing, calendering, heat setting

    Chemical Properties
    Acid Resistance Good
    Alkali Resistance Moderate
    Abrasion Resistance Excellent
    Hydrolysis Resistance Moderate


    Confirm the application requirements

    Combustible dust applications require a qualified system assessment. Confirm the dust properties, approved media, grounding and any required explosion protection with the collector manufacturer. A conductive filter bag alone does not certify a system as safe.
