Polyester Dust Collector Bag

Keywords:

Classification:Filter Bag

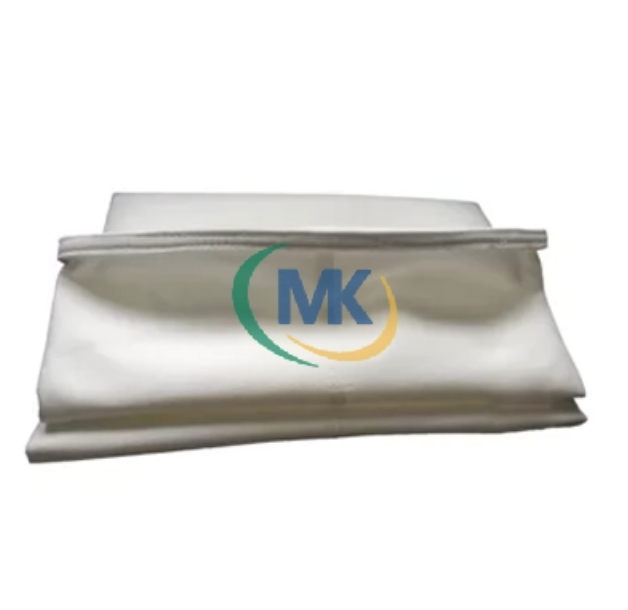

    Polyester Dust Collector Bag

    Manufactured from Sinopec Yizheng high-strength polyester fibers via high-frequency, dense, high-speed needle punching, complying with GB/T6719-2009 standard. These filter bags offer superior filtration precision and easy ash cleaning for a wide range of industrial applications.


    Product Advantages
    • High porosity & density for superior filtration precision

    • Excellent air permeability and easy ash cleaning

    • Select the operating temperature limit from the approved media specification for your process.

    • Soft texture with high tensile strength


    Material Properties
    • Glass transition temperature: ~80°C

    • Melting point: 255-265°C (starts softening at 230-240°C)

    • Heat-shrinkable fiber (strength loss at 170°C is recoverable)

    • Poor alkali resistance & hydrolysis stability


    Production Capacity

    Daily Output: 2000-3000 units of Φ130×6000mm bags (custom specifications available)

    Key Applications

    Widely used in various industries:


    Steel Industry


    Cement Plants


    Power Plants


    Mining


    Product Specifications


    Temperature Resistance

    Confirm continuous and short-term temperature limits for the selected media grade.


    Material

    Polyester Fiber + Polyester Base Fabric


    Gram Weight

    500 ±5% g/m²


    Thickness

    1.9 ±0.1 mm


    Air Permeability

    14 ±20% m³/m²·min @127Pa


    Filtration Velocity

    <1.2 m/min


    Technical Parameters


    Core Specifications

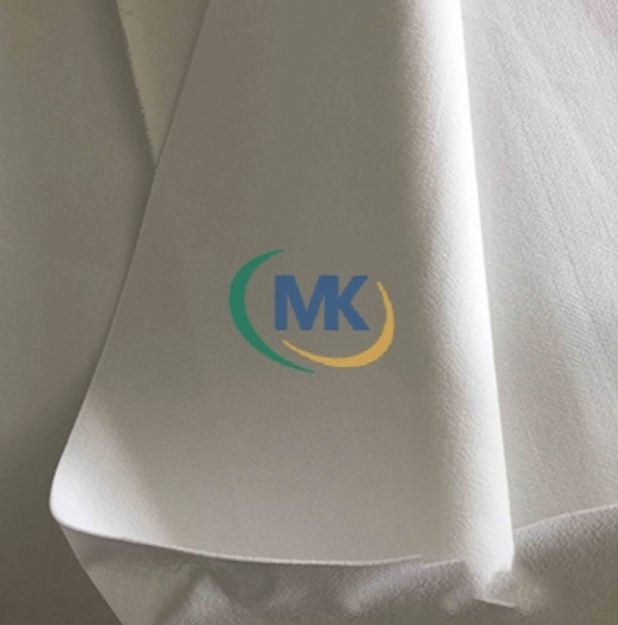

    Product Name Polyester Needle Punched Felt
    Material Polyester Fiber + Polyester Base Fabric
    Gram Weight (g/m²) 500 ±5%
    Thickness (mm) 1.9 ±0.1
    Air Permeability (m³/m²·min @127Pa) 14 ±20%
    Filtration Velocity (m/min) <1.2
    Tensile Strength (Warp, N/5×20cm) >1100
    Tensile Strength (Weft, N/5×20cm) >1200
    Elongation at Break (Warp, %) <35
    Elongation at Break (Weft, %) <55
    Continuous Operating Temp. Confirm with the selected media specification
    Instant High Temp. Confirm allowable surge temperature and duration

    Chemical Properties
    Acid Resistance Good
    Alkali Resistance Poor
    Oxidation Resistance Fair
    Hydrolysis Stability Susceptible to hydrolysis; assess heat and moisture exposure
