    Filter Cage Bottom Plates and Support Rings

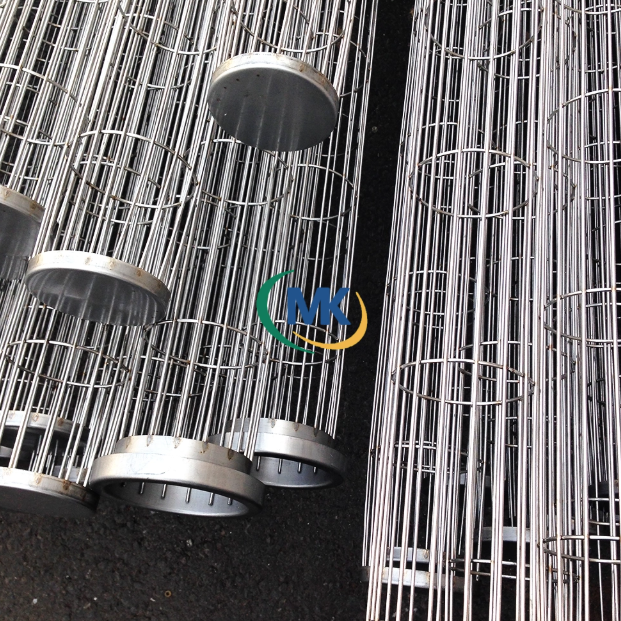

    This view highlights the closed bottom plates and circular support rings on a batch of cylindrical cages. The end construction should support the bag without leaving sharp projections or creating an incorrect fit at the bag bottom.

    Bottom-end construction checks

    • Bottom-plate diameter, profile and attachment details.

    • Distance from the plate to the first support ring.

    • Longitudinal wire ends, edge finish and bag-end clearance.

    Include a bottom-end photo in addition to the overall cage dimensions. Confirm the required material, wire arrangement and ring spacing on the drawing. If reinforcement is needed, state the operating and load requirements for review with the drawing.

    Send drawings, dimensions and quantities to Mingkai to confirm the quotation specification. See the filter cage range or compare the related connection or construction.
