    Filter Cage Flange and Inner Sleeve

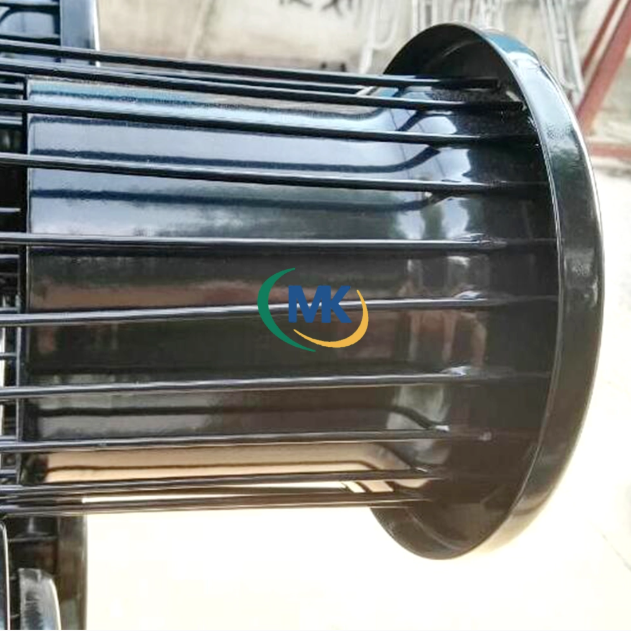

    The close-up shows a circular flange around an internal sleeve, with cage wires arranged around the connection. This detail is relevant when the replacement must fit a particular equipment opening or bag retaining arrangement.

    Flange and sleeve measurements

    • Flange outside diameter and contact surface.

    • Sleeve opening, depth and internal profile.

    • Wire clearance, bag mouth and retaining details.

    Provide a section drawing where possible so the internal profile can be matched as well as the outside dimensions. Confirm the required material and finish separately. Include the complete cage length and body drawing with this connection detail.

    Send drawings, dimensions and quantities to Mingkai to confirm the quotation specification. See the filter cage range or compare the related connection or construction.
