Cylindrical Filter Cage Configurations
Cylindrical Filter Cage Configurations

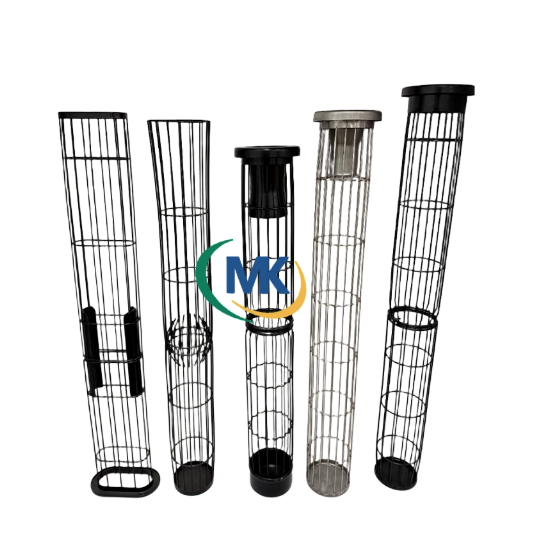

The illustration brings together several cylindrical cage configurations. Their lengths, top collars, internal sleeves and joining details differ, so this page is a reference for comparing the connection arrangement required by your collector.
Choose the connection before the dimensions
Top collar, flange or open-ring arrangement.
One-piece or joined body, including the joint position.
Total length, cage diameter and bottom-end construction.
Mark the required configuration on a drawing or reference photo. If the cage is assembled from sections, include the connection overlap and the available installation space. A similar outside diameter does not establish interchangeability when the top fitting or joint is different.
Send drawings, dimensions and quantities to Mingkai to confirm the quotation specification. See the filter cage range or compare the related connection or construction.
