Filter Cage Collar and Bag Connection
Filter Cage Collar and Bag Connection

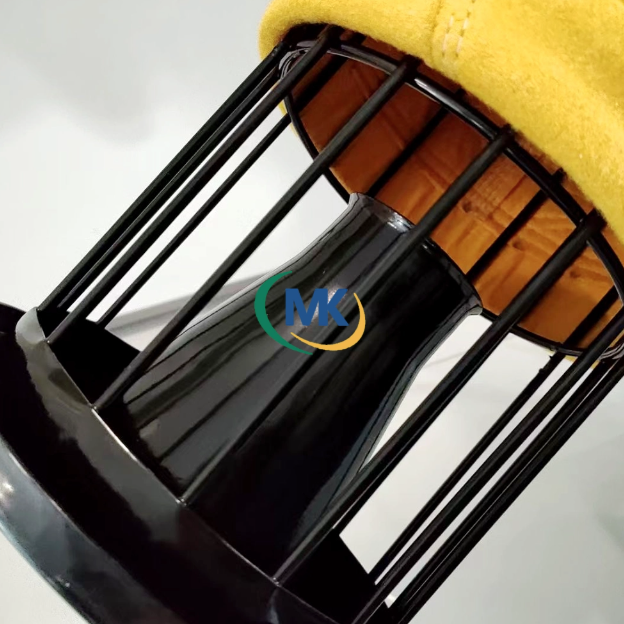

The illustrated assembly shows longitudinal cage wires, a circular collar and an internal sleeve beside a yellow filter bag. The close-up focuses on how the support and the bag mouth meet at the connection end.
Bag-mouth and collar fit
Bag mouth inside diameter and collar outside diameter.
Collar depth, internal sleeve and any locating surfaces.
Bag retaining method, seam clearance and sealing details.
Use a drawing or measurement of the existing connection to confirm the replacement. State whether the enquiry is for the cage, the bag or both components. Specify the bag medium and cage finish for the process conditions independently of the visible colour in the photo.
Send drawings, dimensions and quantities to Mingkai to confirm the quotation specification. See the filter cage range or compare the related connection or construction.
