    Filter Cage with Welded End Plate

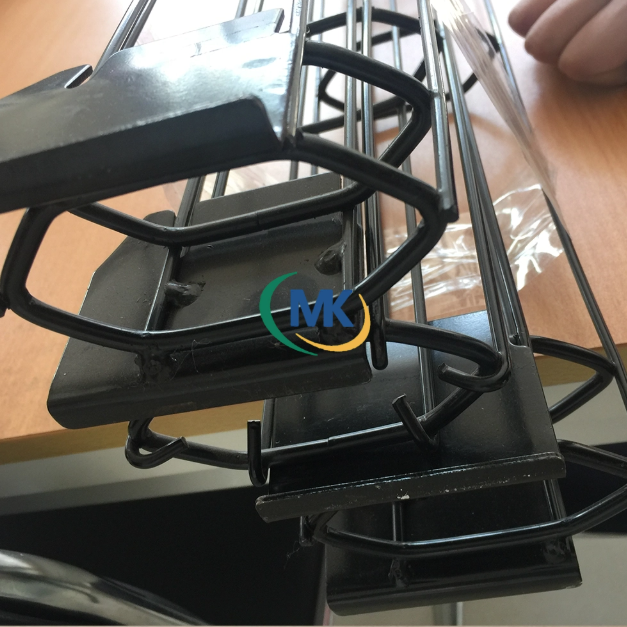

    The close-up shows the connection between formed wire supports and a rectangular end plate. This end detail is important when a replacement cage must locate against a matching plate, bag opening or equipment fitting.

    End-plate and wire-joint details

    • Plate outline, thickness and any fixing-hole positions.

    • Wire positions and clearance at the end of the bag.

    • Required joint finish and permitted weld projections.

    Provide a detail drawing of this end connection instead of relying only on the overall cage length. Identify the surfaces that contact the bag and any edges that need to be smooth. The required material and surface treatment should be specified with the operating conditions.

    Send drawings, dimensions and quantities to Mingkai to confirm the quotation specification. See the filter cage range or compare the related connection or construction.
